Acid Resistance Testing

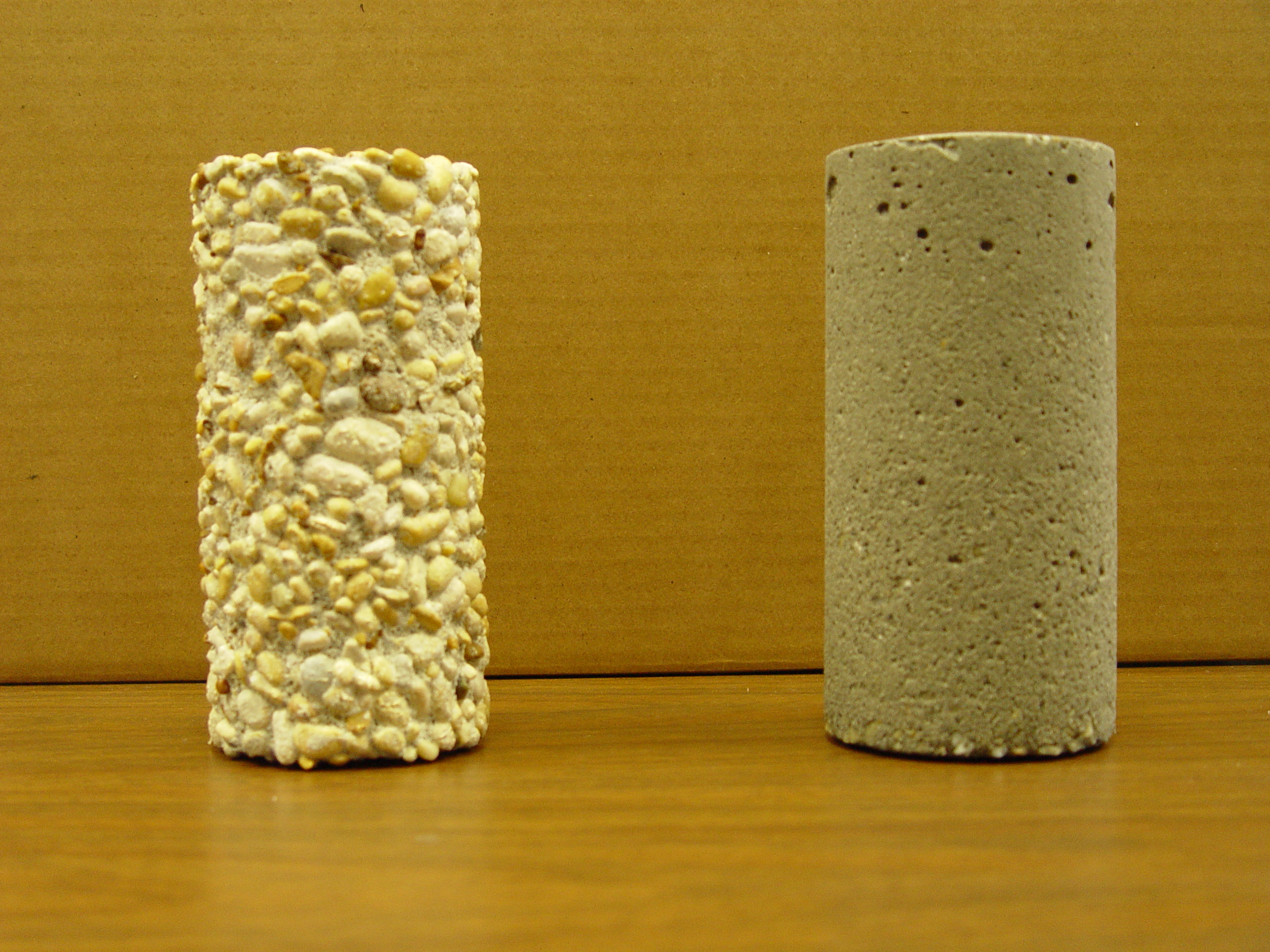

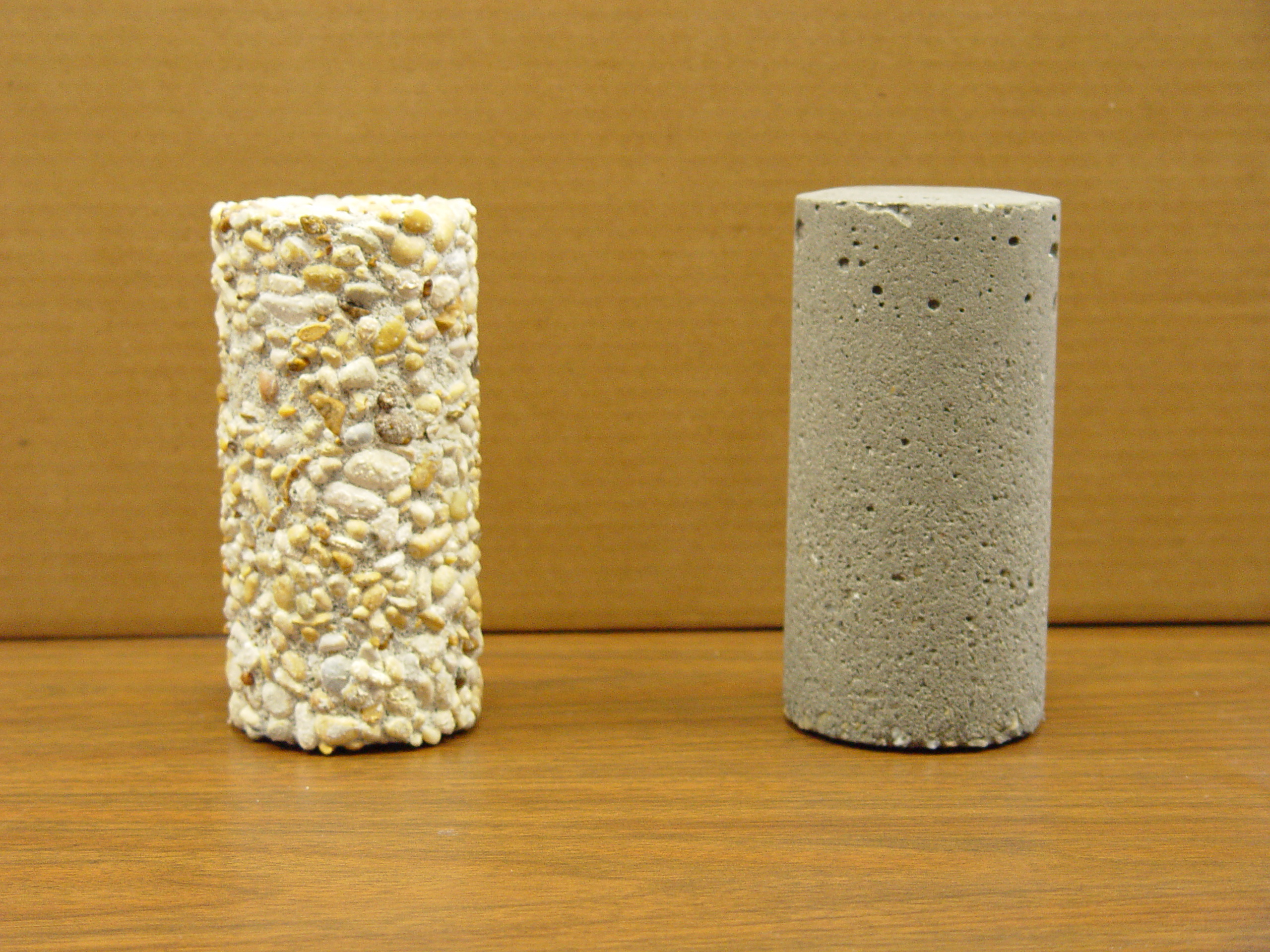

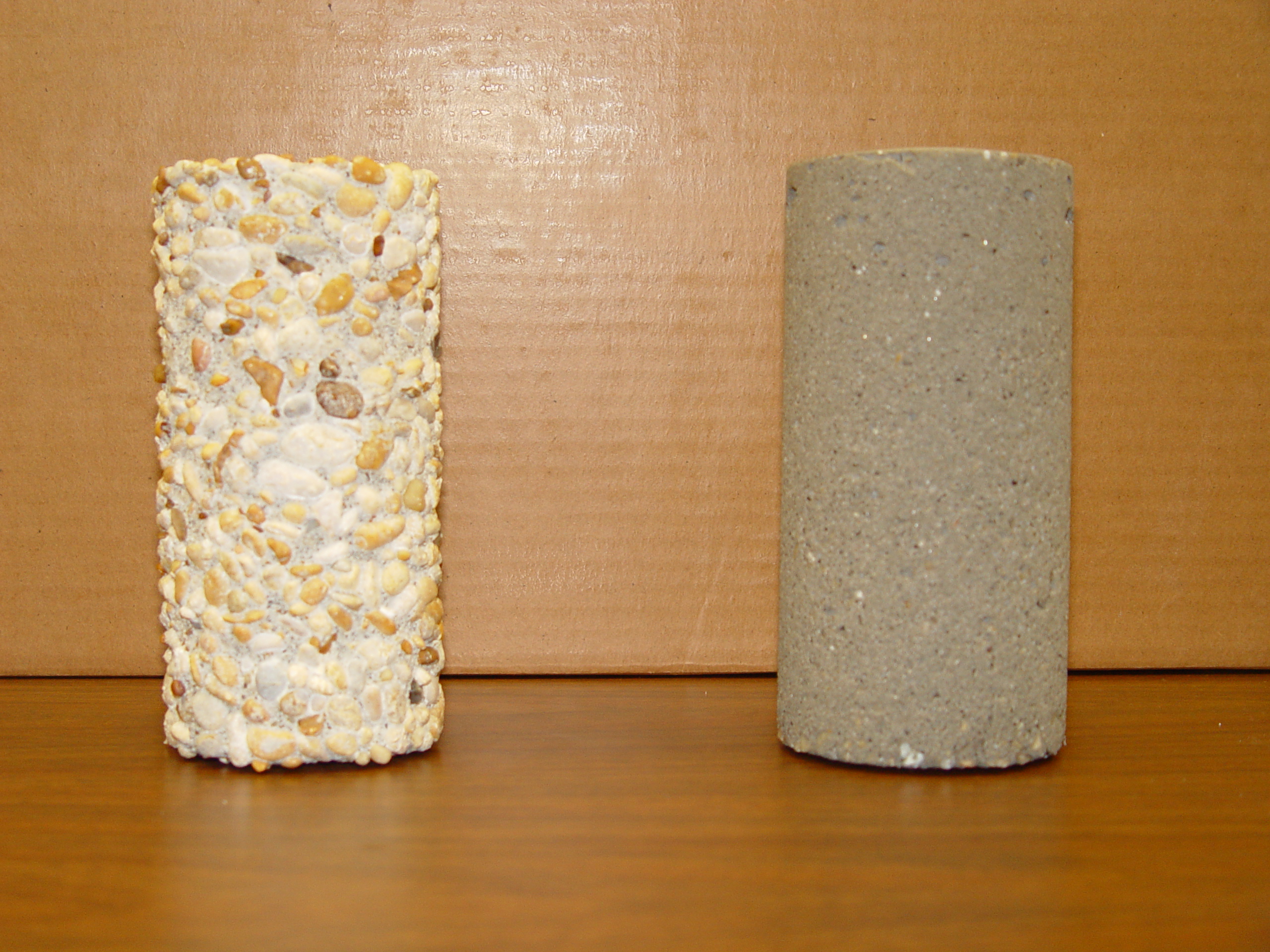

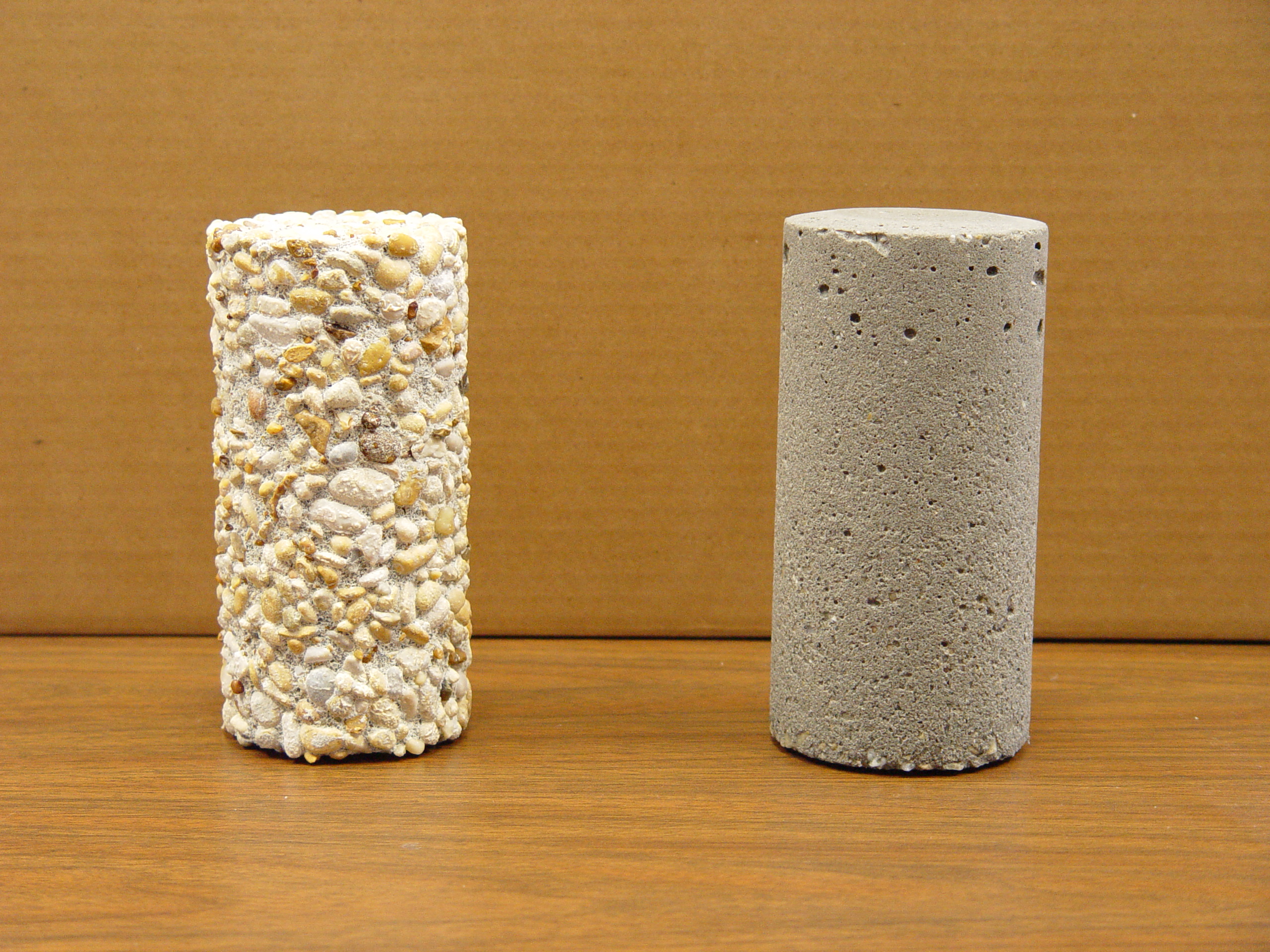

In extensive testing, a test cylinder made with Dynastone® technology is tested alongside an identically sized test cylinder made with traditional Portland mix. Each was submerged in a 1.0 pH acid bath for thirty 24-hour soak cycles. Between each cycle, each unit was scrubbed to remove any gypsum coating that may had developed as a result of corrosion and each bath was
replenished to a 1.0 pH level. The results:
Acid Resistance Testing Weight Loss- 1 pH |
Cycles |
Traditional Portland |
DynastoneŽ |
30 |
15-30% |
1-3% |
See the results in high resolution:
Compressive Strength
The reaction that occurs with the Dynastone® technology is not a normal pozzolanic reaction. The initial strength gain is a result of the hydration of cement and water. Later age strength is attributed to the pozzolanic reaction, however, the strengths continue to increase surpassing that seen in normal fly ash concrete. This is due in part to the Dynastone® activator.
Time |
Target Minimum Strengths |
Dynastone® |
12 hours |
1500 psi |
2000 psi |
1 day |
1800 psi |
2000-3500 psi |
28 days |
5000 psi |
5000-6000 psi |
56 days |
5000 psi |
6000-8000+ psi |
Tensile Strength
Tested in accordance with ASTM C 496 "Standard test Method for Splitting Tensile Strength of Cylindrical Concrete Specimens":
Traditional Portland |
Dynastone® |
|
|
Flexural Strength
Tested in accordance with ASTM C78 "Standard Test Method for Flexural Strength of Concrete (Using Simple Beam with Third-Point Loading)":
Traditional Portland |
Dynastone® |
|
|
Absorption
When a test to determine the absorption of a sample from the wall of a pipe, using ASTM C 497 "Standard Test Methods for Concrete Pipe, Manhole Sections, of Tile" :
Traditional Portland (ASTM C 76) Pipe |
Dynastone® Pipe |
Method A - 9 % |
< 5% |
|
Complete material performance documentation is available from Dynastone® Labs.
